Wiring harness
Most dead trailer lights are a connection problem, not an LED problem. This is the half of the system that decides whether the lamp lasts.
What we supply
- Split Y-harnesses in 22 ft runs with a 4 ft trunk, colour-coded, 4-pin flat.
- PL-3 sealed plugs and matching grommets for every lamp size in the range.
- Pigtails and mounting hardware, supplied with the kits and stocked as service parts.
Why the sealed side matters
- Moisture enters at the connector long before it reaches the LED.
- Sealed PL-3 terminations plus IP67 lamp bodies remove the usual failure path.
- Grommets and plugs are kept as spares so a lamp swap never becomes a wiring job.
Parts for this solution
Where to start
Kits & Harnesses

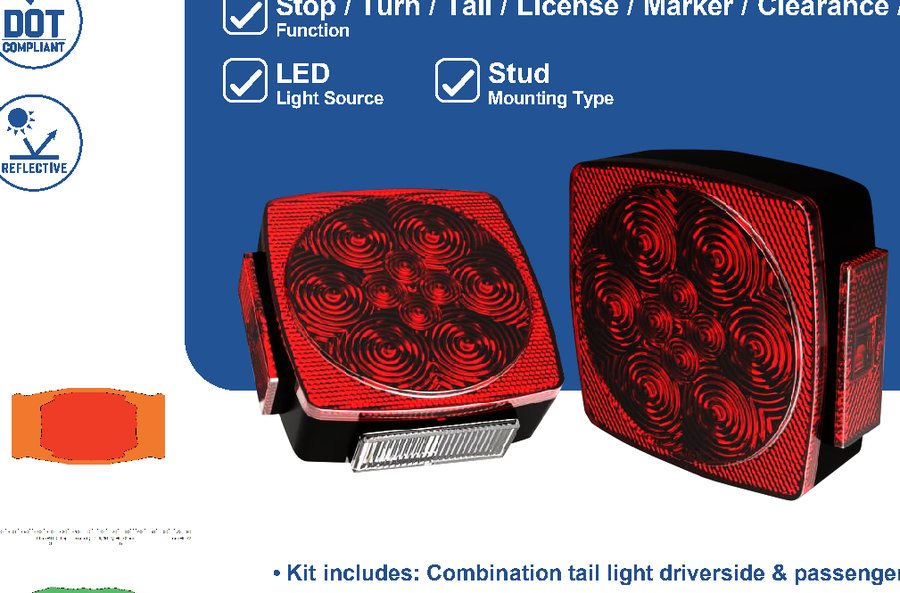

4" Low-Profile Combination Kit — Under 80"
- Part number
- 2060003
- Functions
- S T I A · A P2 · L
- Suited to
- Trailers under 80" wide
- Voltage / current
- 13.5 VDC · tail 0.07 A / stop 0.18 A
Kits & Harnesses

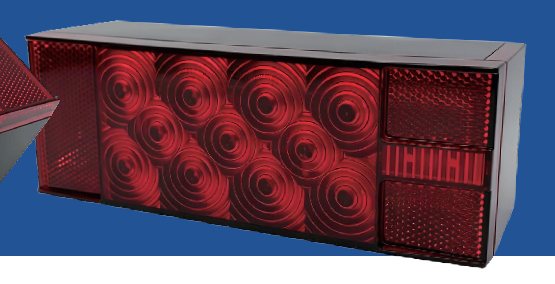

8" Low-Profile Kit — Over 80"
- Part number
- 2060114
- Functions
- S2 T2 I6 · A2 P3 · L
- Suited to
- Trailers over 80" wide
- Voltage / current
- 13.5 VDC · tail 0.04 A / stop 0.16 A
Kits & Harnesses

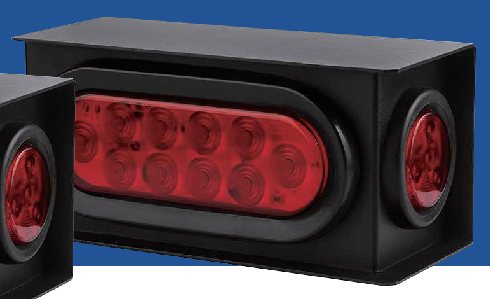

2PK 6" & 2" Trailer Light Box Kit
- Part number
- 2061900
- Functions
- S T I
- Voltage / current
- 13.5 VDC · tail 0.01 A / stop 0.17 A
- Packing
- 1 / 6 · 24.5" × 10.5" × 11.5" · 45.5 lb
Next step
Send us the specification
We will point you at the right part numbers, or quote a custom variant.
